Mapping Mule’s Ears

One common factor contributing to mistakes when people are identifying plants is the scarcity of user-friendly visual documentation (i.e., maps) showing where different species occur in the world. Sure, more than one species of a genus will often co-occur in the same general area, but maps can help you quickly narrow down the number of possibilities in a given area.

Another aid that’s commonly missing is an explanation of how one species differs from a small set of related or similar species, where they may occur near each other. Keys can provide the technical details for distinguishing one plant from all others in a genus-wide or family-wide context, often over a wide area, but may obscure the simple details that can distinguish “Species A” from “Species D” where just those two happen to occur together.

How nice it would be to have more maps of species distributions based on current data for collections and observations. Such maps, together with keys and notes on how to distinguish one species from others in the same area, could facilitate more accurate identifications—especially in genera with little to moderate overlap of species ranges.

Wyethia mollis

This could be a fun project to help pass a pandemic winter, yes?

To explore the idea a bit further, I looked for a genus of modest size in western North America, with at least one species in Mono County. There are many genera to choose from. I selected Wyethia, commonly known as Mule’s Ears (or Mule Ears or Mules Ears), a genus with 14 distinct and well-documented species scattered across the mountains, hills, and deserts of western North America. Hikers in the upper elevations and east side of the Sierra Nevada will know Woolly Mule’s Ears (Wyethia mollis) as one of the brightest and showiest sunflowers of the region.

Here, then, is Mule’s Ears: an Atlas and Guide, a free PDF on my Downloads page. Look it over and let me know if you find this approach and format useful (corrections and suggestions are always welcome).

A Note on Taxonomy
Traditionally, the 14 species of Mule’s Ears have been grouped all together in the genus Wyethia. (As of this date, the Jepson eFlora still treats all California species under Wyethia.) Currently, however, most sources recognize 3 separate genera in this group: Wyethia in a stricter sense (with 8 species), Agnorhiza (with 5 species), and Scabrethia (with 1 species). These are differentiated mostly by the shape, relative sizes, and distribution of leaves. Personally, I’m not always a fan of splitting genera by their sections, but in this case, I think it helps us recognize very visible differences within the group and makes the keys more manageable.

Methods
I downloaded location data (in CSV format) for herbarium collections of each species from the California Consortium of Herbaria (CCH), the Southwest Environmental Information Network (SEINet), the Intermountain Regional Herbarium Network, and the Consortium of Pacific Northwest Herbaria, along with crowd-sourced observation data from iNaturalist. These I imported to a base map of US states and counties, Canadian provinces, and Mexican states using QGIS (a free, open source GIS application).

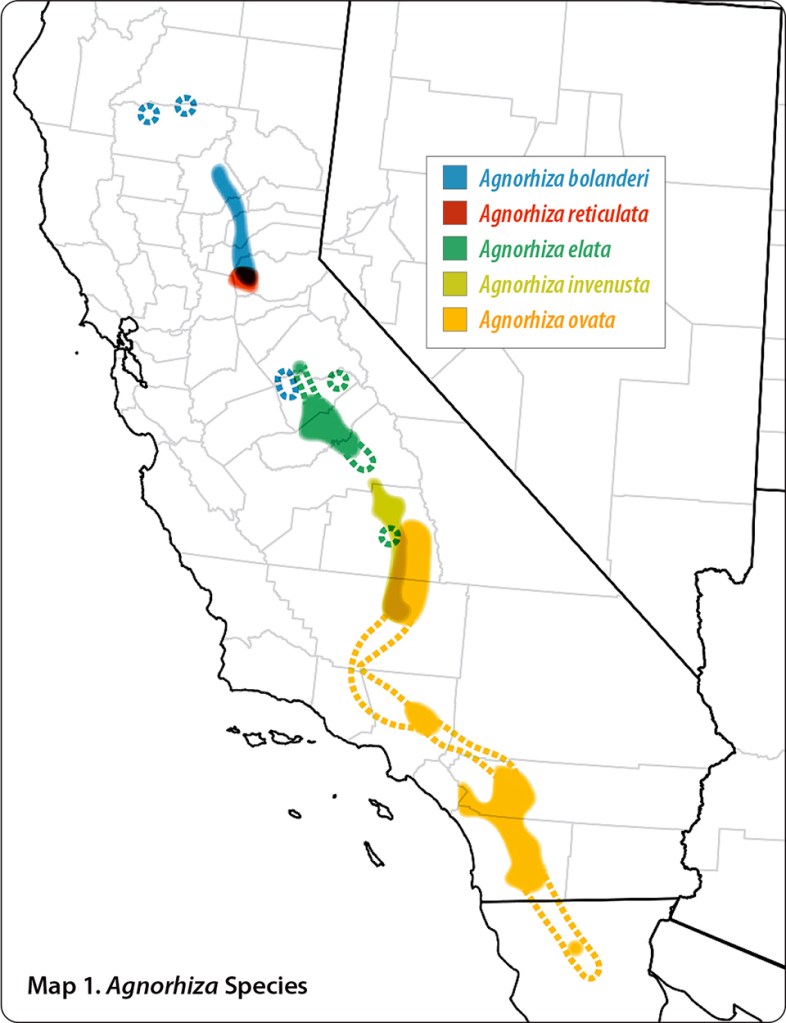

For each species I exported a PDF dot map of collections and observations. These I placed into Adobe Illustrator, aligned with a clean base of only the state and county boundaries. I then traced the approximate boundaries of the occurrence clouds. In doing so, I did quick reality checks on occurrences that appeared inconsistent with overall distribution patterns or distributions reported in the literature. Many of these anomalies turned out to be obvious misidentifications or incorrect mapping of collection coordinates. Colors and patterns were used to differentiate species in the maps.

The final booklet, together with photographs licensed for non-commercial use by iNaturalist contributors (acknowledged in the booklet), was assembled in Adobe InDesign.

How to use this Booklet
1. Download the 16-page PDF from the DOWNLOADS PAGE. I suggest saving this into the library of the books app on your smart phone or tablet (e.g., Books on Apple devices) to keep it handy in the field. The pages are formatted as half-letter size (5.5 X 8.5 inches), so it’s fairly readable on your phone (if you’re near-sighted) or on your tablet.

2. You can also print this as a 16-page booklet from your computer using Adobe Acrobat or Adobe Reader (and probably other PDF apps). Tell the application to print all pages in Booklet format, both sides, left binding, and auto-rotate pages. Use letter-size (8.5 X 11) paper, and select your specific printer (not the generic “Any Printer”) and “US Letter” paper size in the printer dialog. This should result in the pages being filled and with centers properly aligned for folding. After printing, arrange as needed to make sure the page numbers are in proper sequence, fold the stack in the middle, and staple along the fold (a long-reach stapler works best for this).

3. Go forth and Botanize!
